ACCUD VM5040M VISION MACHINE 500x400mm with motorized focus
Professional vision machine with granite base and column. Technical specification: Measuring range(X/Yaxis): 500×400mm Z axis travel with scale: 200mm Stage moving method: Manual Linear scale resolution (X/Y/Z axis): 1µm Accuracy (X/Yaxis): (3+L/200)µm Lis… Read more
NOVINKA
Order number: VM5040M
Product description

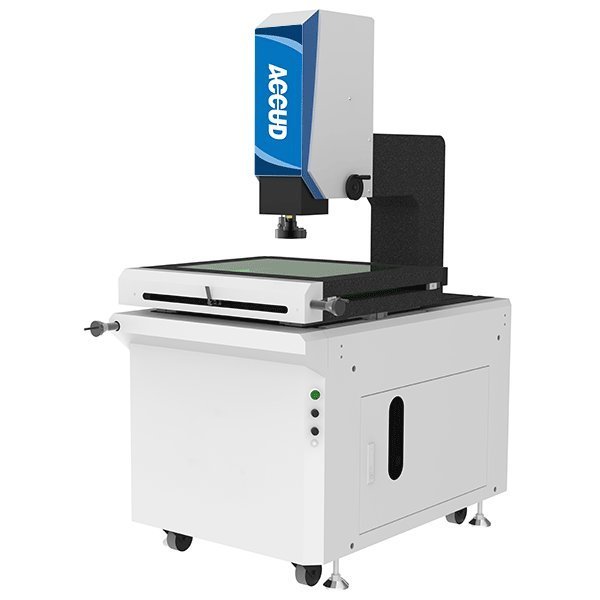

Professional vision machine with granite base and column.
Technical specification:
- Measuring range(X/Yaxis): 500×400mm
- Z axis travel with scale: 200mm
- Stage moving method: Manual
- Linear scale resolution (X/Y/Z axis): 1µm
- Accuracy (X/Yaxis): (3+L/200)µm Lis the measuring length in mm
- Repeatability: 2µm
- Focus: 90mm
- Lens magnification: 0.7X-4.5X
- Total magnification: 30-220X
- Camera: Color CCD, 1.3M pixel
- Illumination: contour illumination: LED, brightness adjustment, surface illumination: LED, brightness adjustment
- Max. glass stage loading: 30kg
- Dimension (L×W×H): 1250×860×1690mm
- Weight: 450kg
Included accessories:
- Main unit: 1pc
- Calibration block: 1pc
- Software with USB dongle: 1pc
- Controller: 1pc
- Operating table(only VM5040 included ): 1pc
Optional accessories:
- 0.5X auxiliary objective: VM-OB05X
- 2X auxiliary objective: VM-OB2X
- Computer: VM-PC
- Operating table (except for VM5040): VM-Table
- Calibration scale: series 552

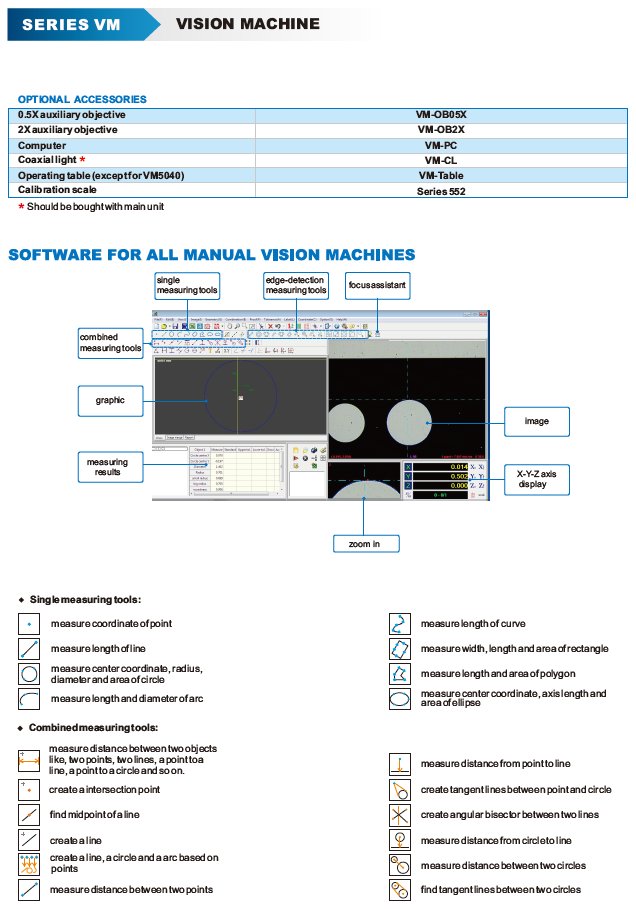

Software:
Install software:
Pixel calibration:
Adjust light and focus:
Video measurement:
Probe measurement:
Combine measurement:

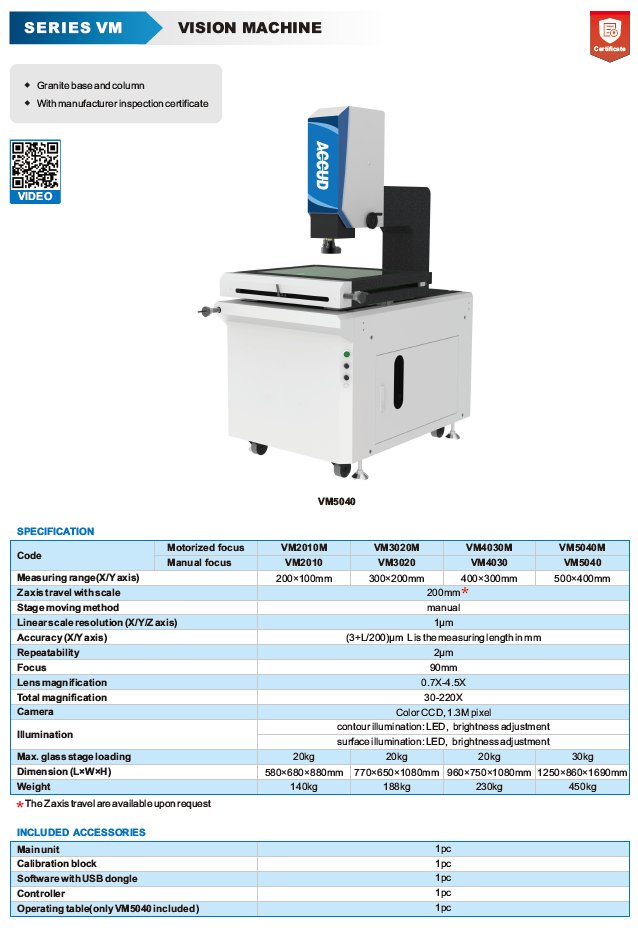

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
Parameters
| Skladem | No |
