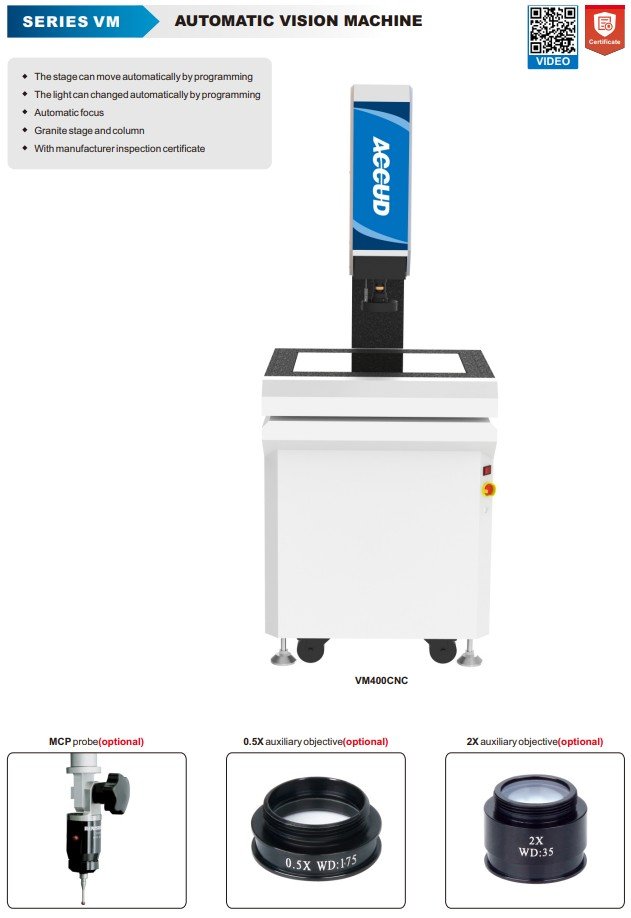

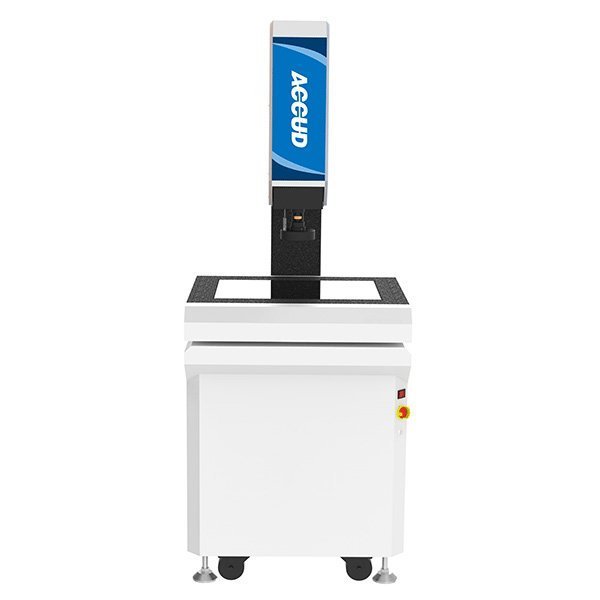

ACCUD VM300CNC CNC VISION MACHINE 300x200x200mm
CNC vision machine Technical specification: Measuring range (X/Yaxis): 300×200mm Z axis travel with scale: 200mm(automatic) Stage moving method: automatic Linear scale resolution (X/Y/Z axis): 1µm Accuracy (X/Yaxis): (2.2+L/200)µm Lis the measuring length in mm… Read more
Order number: VM300CNC
Shipping by appointment
Product description
CNC vision machine

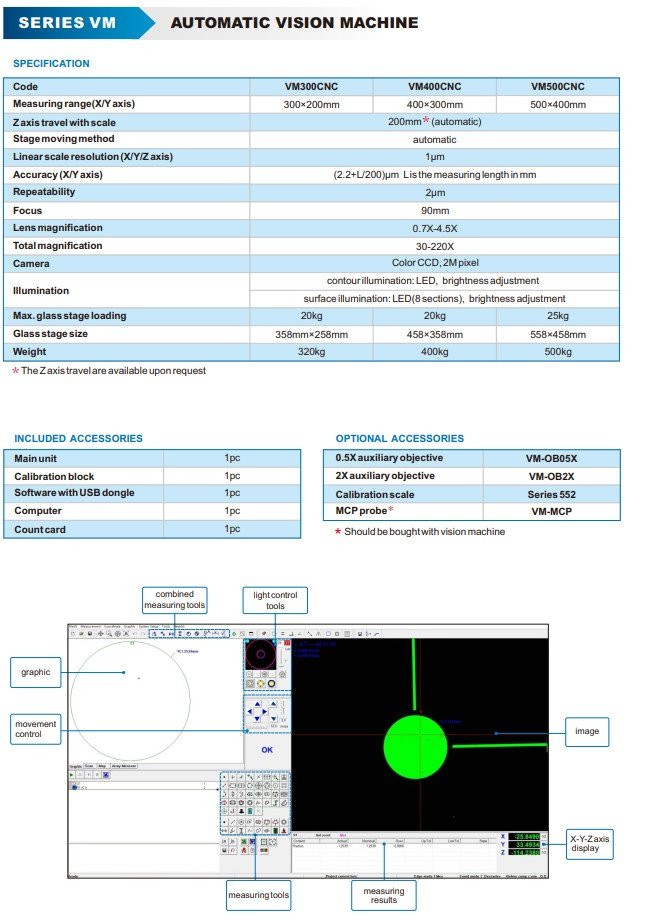

Technical specification:
- Measuring range (X/Yaxis): 300×200mm
- Z axis travel with scale: 200mm(automatic)
- Stage moving method: automatic
- Linear scale resolution (X/Y/Z axis): 1µm
- Accuracy (X/Yaxis): (2.2+L/200)µm Lis the measuring length in mm
- Repeatability: 2µm
- Focus: 90mm
- Lens magnification: 0.7X-4.5X
- Total magnification: 30-220X
- Camera: Color CCD, 2M pixel
- Illumination: contour illumination: LED, brightness adjustment
surface illumination: LED(8 sections), brightness adjustment
- Max. glass stage loading: 20kg
- Glass stage size: 358mm×258mm
- Weight: 320kg
Included accessories:
- Main unit: 1pc
- Calibration block: 1pc
- Software with USB dongle: 1pc
- Computer: 1pc
- Count card: 1pc
- Video card:1pc
Optional accessories:
- 0.5X auxiliary objective: VM-OB05X
- 2X auxiliary objective: VM-OB2X
- Calibration scale: Series 552
- MCP probe: VM-MCP (Should be bought with vision machine)
Software:
Preparation:
Quick start:
Program:
Calibration:
Measure with probe:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.This item is option of INSIZE type : ISD-V270CNCA
