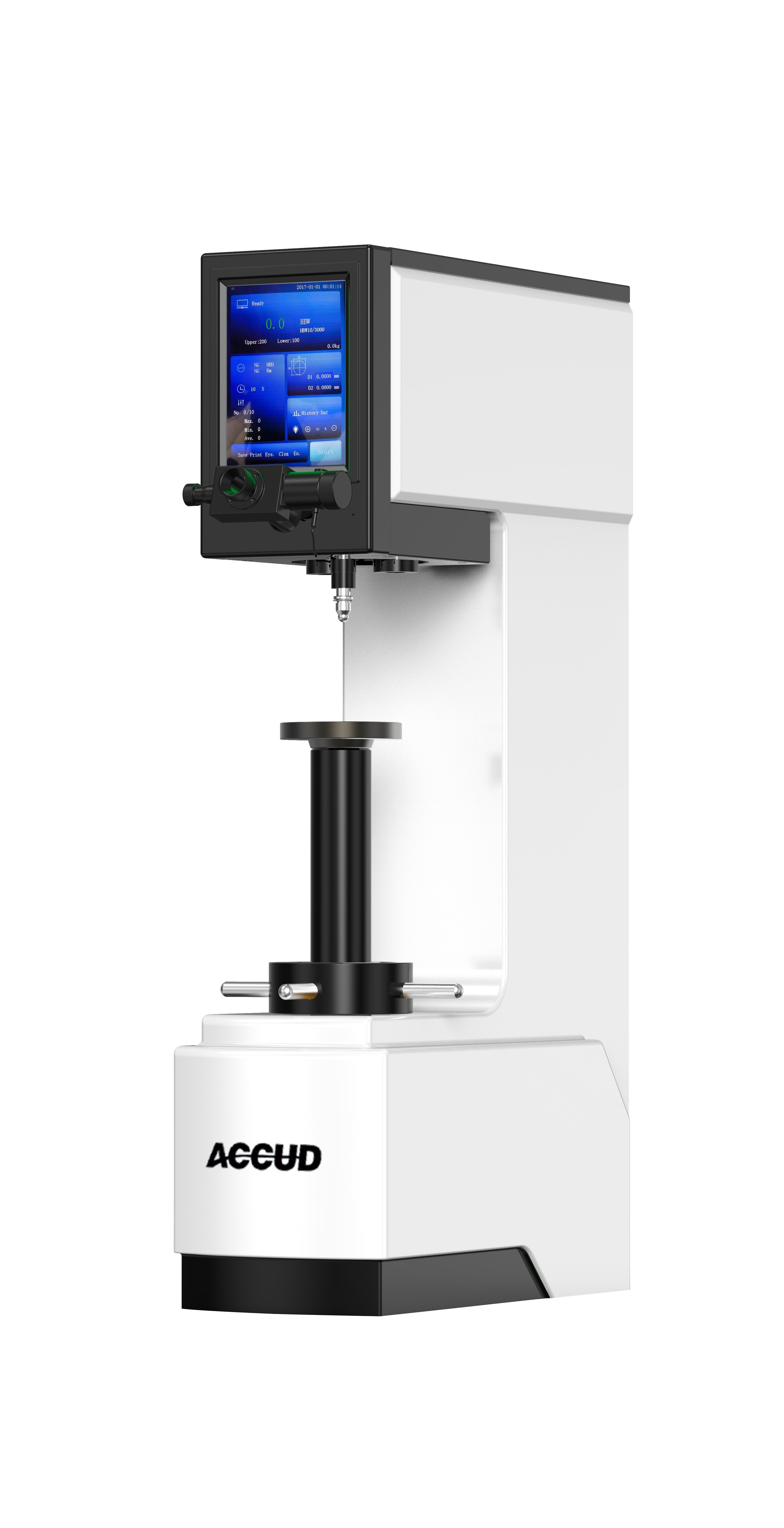

ACCUD HB3000 DIGITAL BRINELL HARDNESS TESTER
Digital brinell hardness tester with electronic close-loop load control system. With touch screen. Can converted to HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS. Technical specification: Measuring range: 8-650HBW Loading force:… Read more
Order number: HB3000
Shipping by appointment
Product description
Digital brinell hardness tester with electronic close-loop load control system. With touch screen. Can converted to HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS.
Technical specification:
- Measuring range: 8-650HBW
- Loading force: 62.5, 100, 125, 187.5, 250, 500, 750, 1000, 1500, 3000kgf
- Measuring result: read from LCD
- Stage elevation: manual
- Loading control: auto
- Load dwell time: 5-60 seconds
- Max. test height: 225mm
- Max. throat: 135mm
- Dimension: 545×235×79mm
- Weight: 130kg
Included accessories:
- Main unit: 1pc
- 20X measuring microscope: 1pc
- Ø10mm carbide ballindenter: 1pc
- Ø5mm carbide ballindenter: 1pc
- Ø2.5mm carbide ballindenter: 1pc

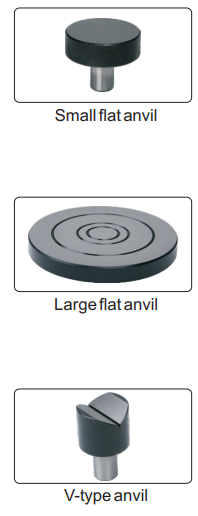

- Small flat anvil: 1pc
- Large flat anvil: 1pc
- V-type anvil: 1pc
- Hardness test block 150-250HBW10/3000: 1pc
- Hardness test block 150-250HBW5/700: 1pc
- Anti-dust cover: 1pc
Manual:

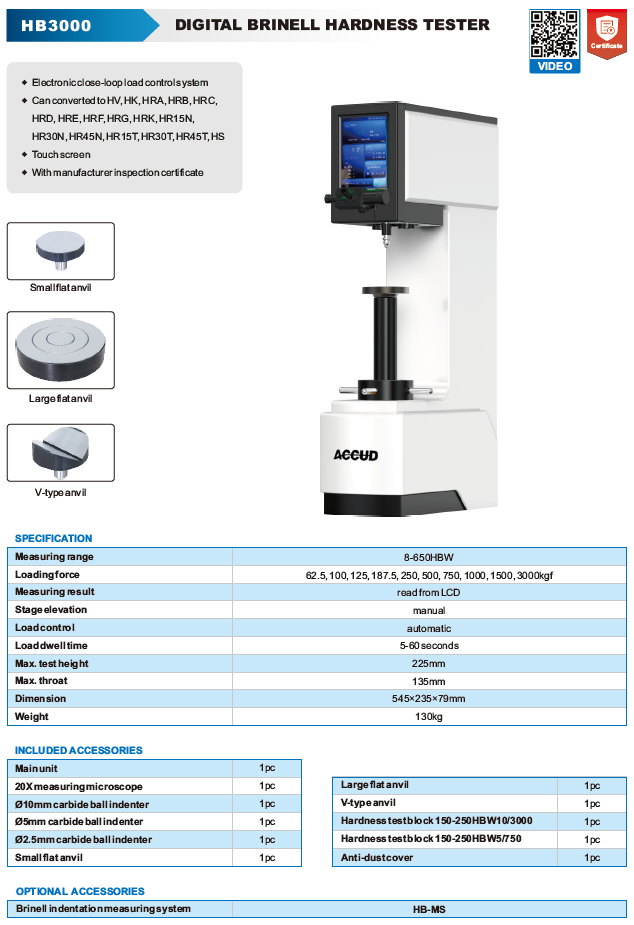

For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
This item is option of INSIZE type : ISHB-D200
