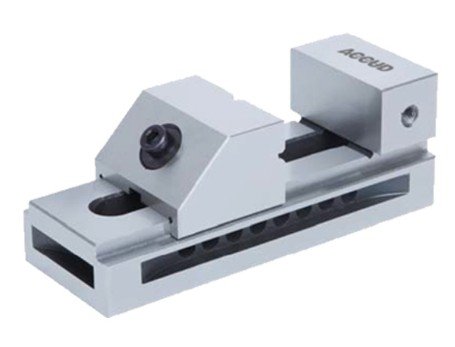

ACCUD 653-100-52 QUICK MOVING PRECISION VISE 0-100mm
Highly precise quick-moving vise made of alloy steel, hardened to HRC 58–60. Designed for efficient and accurate clamping during measurement and light machining, with an emphasis on speed and stability. Technical specifications: Jaw opening (d): 0-100mm Jaw width (W):… Read more
Order number: 653-100-52
Product description
Highly precise quick-moving vise made of alloy steel, hardened to HRC 58–60. Designed for efficient and accurate clamping during measurement and light machining, with an emphasis on speed and stability.
Technical specifications:
- Jaw opening (d): 0-100mm
- Jaw width (W): 80mm
- Four sides with grooves
- Parallelism: 5μm/100mm
- Squareness: 5μm/100mm
- Made of alloy steel
- Hardness HRC58-60

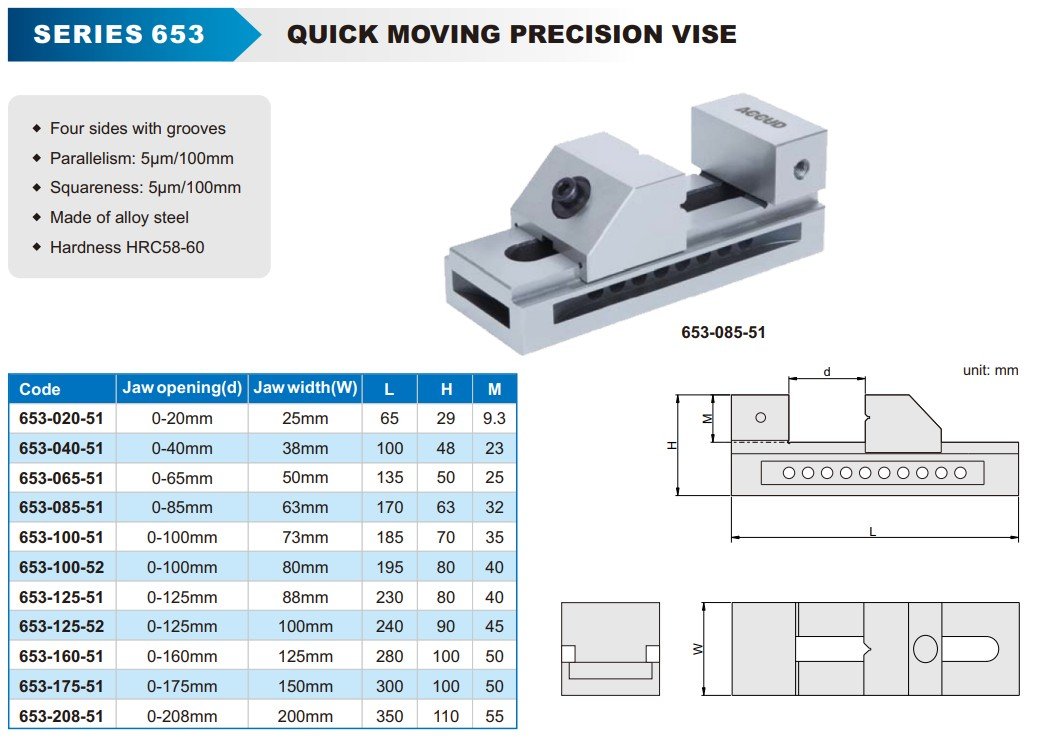

Dimensions:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
Parameters
| Skladem | No |
