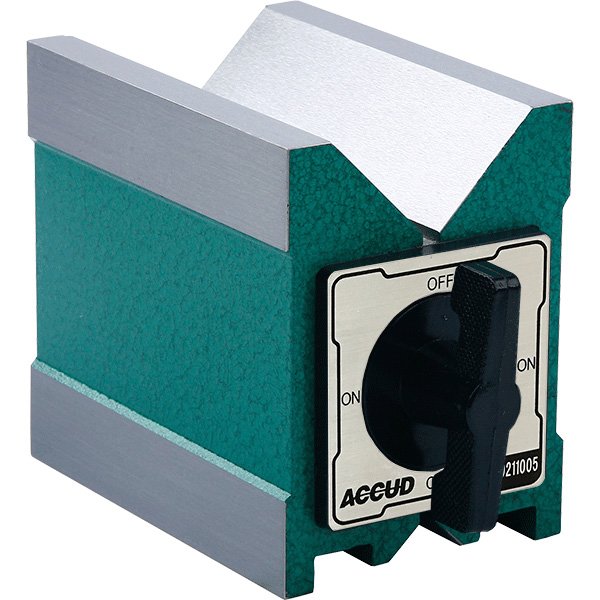

ACCUD 634-067-02P MAGNETIC V-BLOCKS 100x70x95mm (ECONOMIC TYPE, MATCHED PAIR)
The ACCUD 634P paired magnetic prismatic V-shaped blocks are designed for the precise clamping of cylindrical workpieces during measurement, inspection, and machining. With a magnetic holding force of 64 kgf, they ensure stable and secure clamping of workpieces. Technical… Read more
Order number: 634-067-02P
Product description
The ACCUD 634P paired magnetic prismatic V-shaped blocks are designed for the precise clamping of cylindrical workpieces during measurement, inspection, and machining. With a magnetic holding force of 64 kgf, they ensure stable and secure clamping of workpieces.

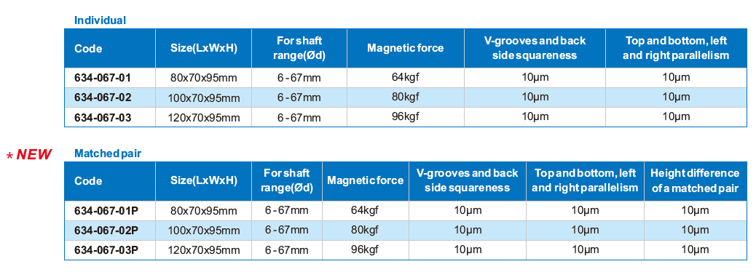

Technical specification:
- Size(LxWxH): 100x70x95mm
- For shaft range(Ød): 6 - 67mm
- Magnetic force: 80kgf
- V-grooves and back side squareness: 10μm
- Top and bottom, left and right parallelism: 10μm
- Height difference of a matched pair: 10μm

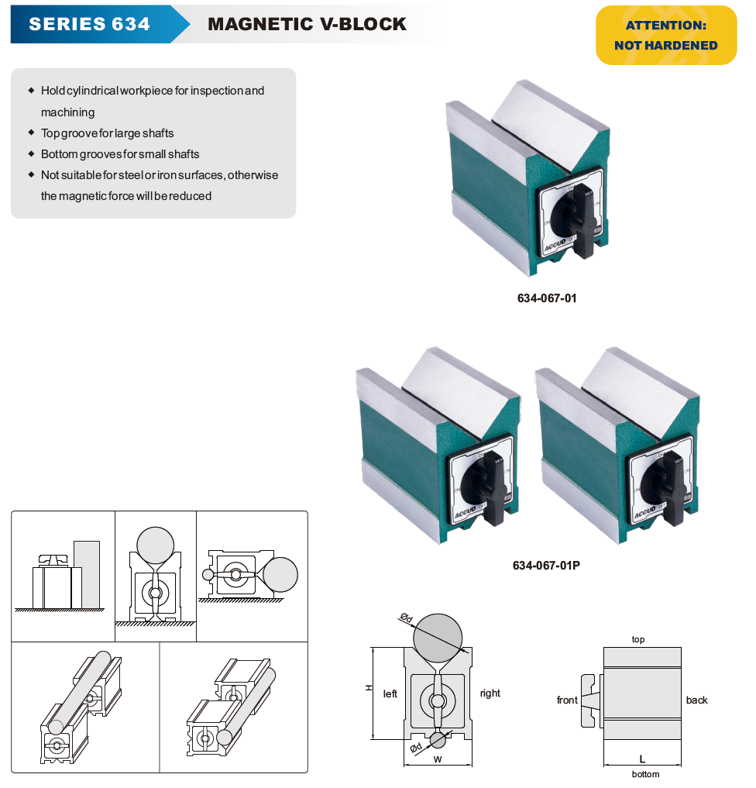

Dimensions :
Measurement scheme:
For more product information, please refer to the attached PDF data sheet below.
