ACCUD 431-250-11 DIAL SNAP GAUGE, DIAL range 225-250mm/9-10" ( indicator is not included )
Dial snap gauge for quick Go/No-Go judgment of diameter of cylinders and shafts. Technical specification: Range: 225-250mm/9-10" Anvil retracting stroke: 3mm Measuring force: 6-9N Carbide measuring faces Front edges of anvils are chamfered foreasy workpiece insertion Optional… Read more
Skladem Vlašim 0 KS
To order by
21 days
U výrobce 0 ks
Order number: 431-250-11
Product description
Dial snap gauge for quick Go/No-Go judgment of diameter of cylinders and shafts.
Technical specification:
- Range: 225-250mm/9-10"
- Anvil retracting stroke: 3mm
- Measuring force: 6-9N
- Carbide measuring faces
- Front edges of anvils are chamfered foreasy workpiece insertion

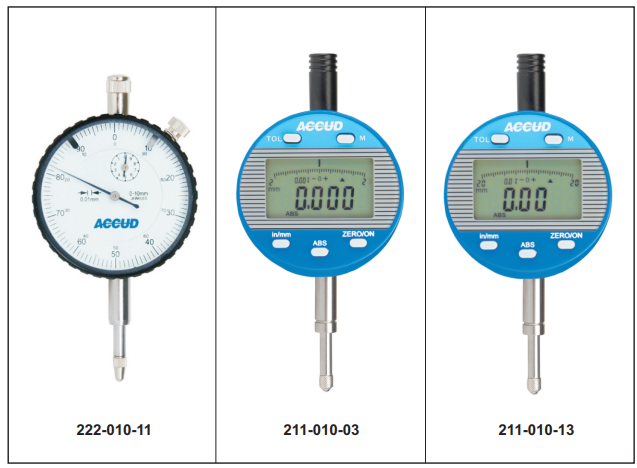

- Optional indicators:
- dial indicator, range 10mm, graduation 0.01mm (code 222-010-11)
- digital indicator, range 12.7mm/0.5″, resolution 0.001mm/0.00005″ (code 211-010-03)
- digital indicator, range 12.7mm/0.5″, resolution 0.01mm/0.0005″(code 211-010-13)
Dimensions:
Optional indicators:
For more product information, please refer to the attached PDF data sheet below.
Don't know how to choose a suitable meter? Contact our sales representatives! Click HERE to go to the contacts section.
