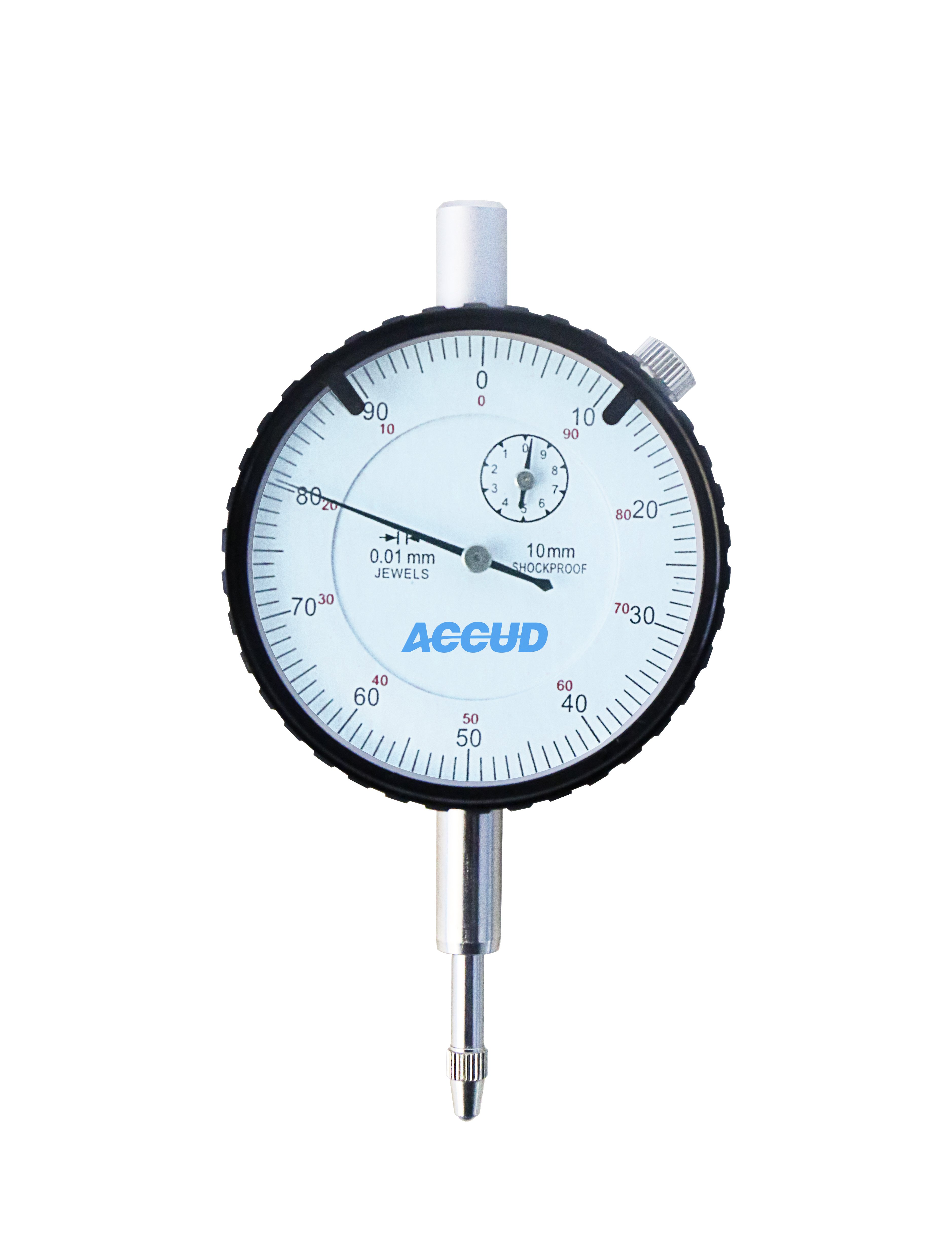

ACCUD 226-005-12 SHOCKPROOF DIAL INDICATOR 0-5mm ( 0,01mm ) FLAT BACK
Shockproof dial indicator with flat back. Technical specification: Range: 0-5mm Graduation: 0,01mm Accuracy: 14μm Hysteresis: 3µm Shockproof With limit hands Jeweled bearing Rang per revolution: 1mm Supplied with lug and flat back Dimensions: Styli (optional): … Read more
NOVINKA
Skladem Vlašim 0 KS
Availability:
On request
Order number: 226-005-12
Product description
Shockproof dial indicator with flat back.

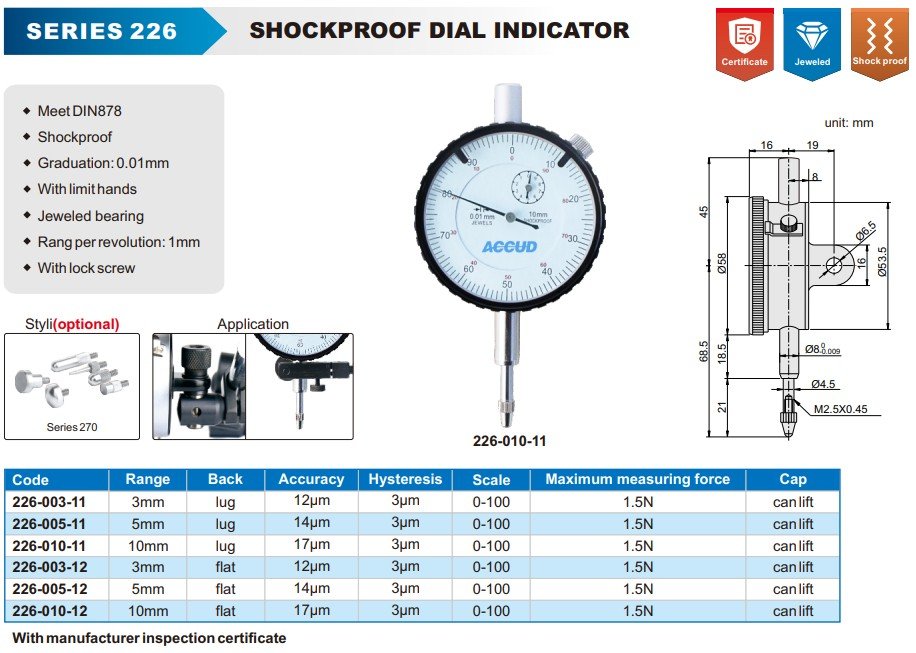

Technical specification:
- Range: 0-5mm
- Graduation: 0,01mm
- Accuracy: 14μm
- Hysteresis: 3µm
- Shockproof
- With limit hands
- Jeweled bearing
- Rang per revolution: 1mm
- Supplied with lug and flat back
Dimensions:
Styli (optional):
Application:
For more product information, please refer to the attached PDF data sheet below.
